北京德潤晨專注于CCUS領域
Beijing DRC focuses on the CCUS field
致力于開展碳捕集方面的材料研發、工藝開發和工程應用等工作
Committed to conducting material research and development, process development, and engineering applications in carbon capture
是全球僅有的幾家可以同時進行商業規模化DAC空氣CO2直捕和工業煙氣CO2捕集的公司
DRC is a leading company capable of commercializing CO2 capturing system for both Direct Air Capture (DAC) and industrial flue gas capture system (IFGC)
一、DAC空氣CO2直捕
1. Direct Air Capture
從2018年開始,北京德潤晨開展了中國最早的固態胺碳捕集材料DAC空氣直捕實踐驗證
Since 2018, DRC has carried out practical verification of China's earliest solid-state amine carbon capture material DAC air direct capture

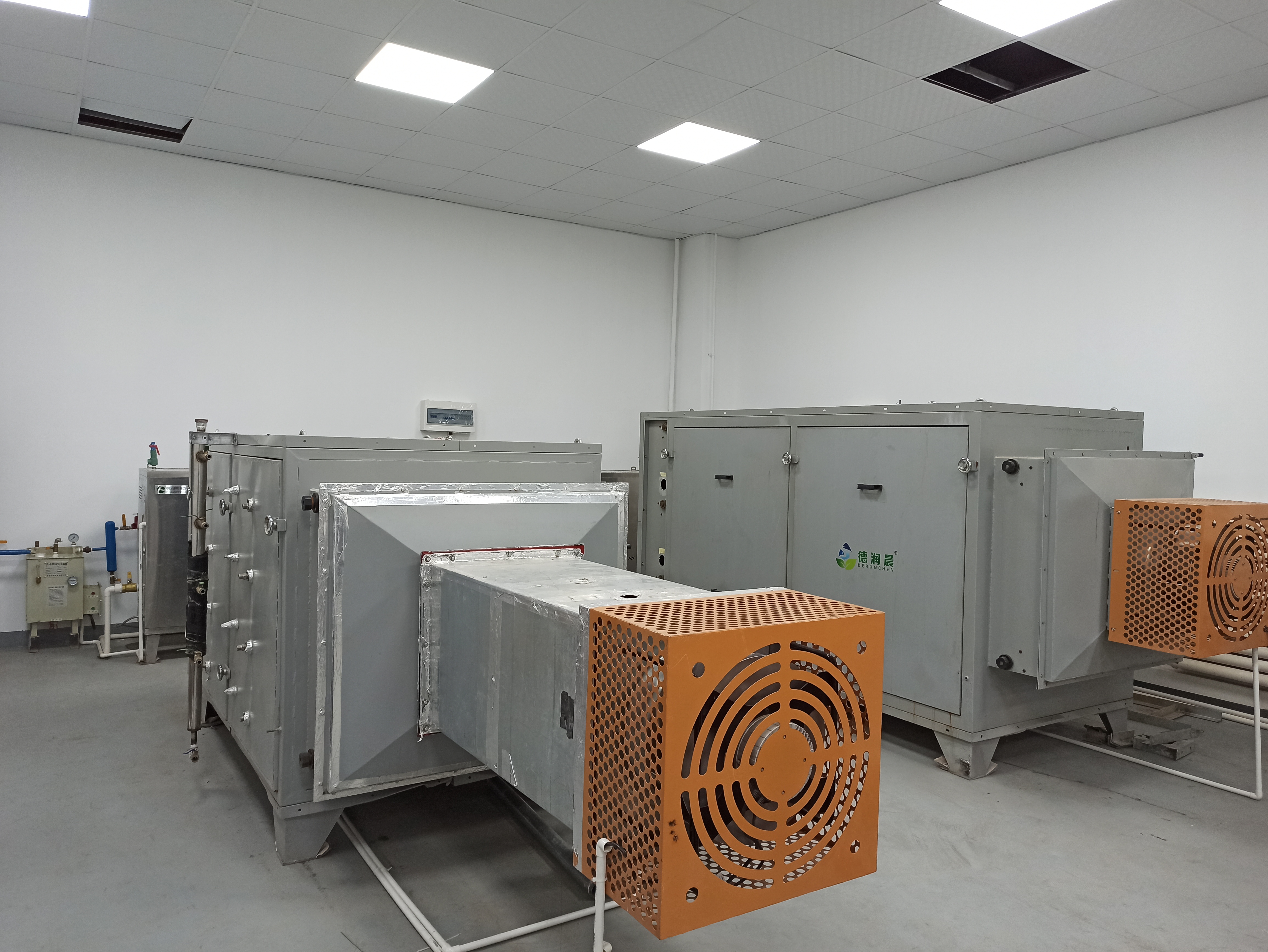

并完成了后續模塊化設計
And completed the subsequent modular design

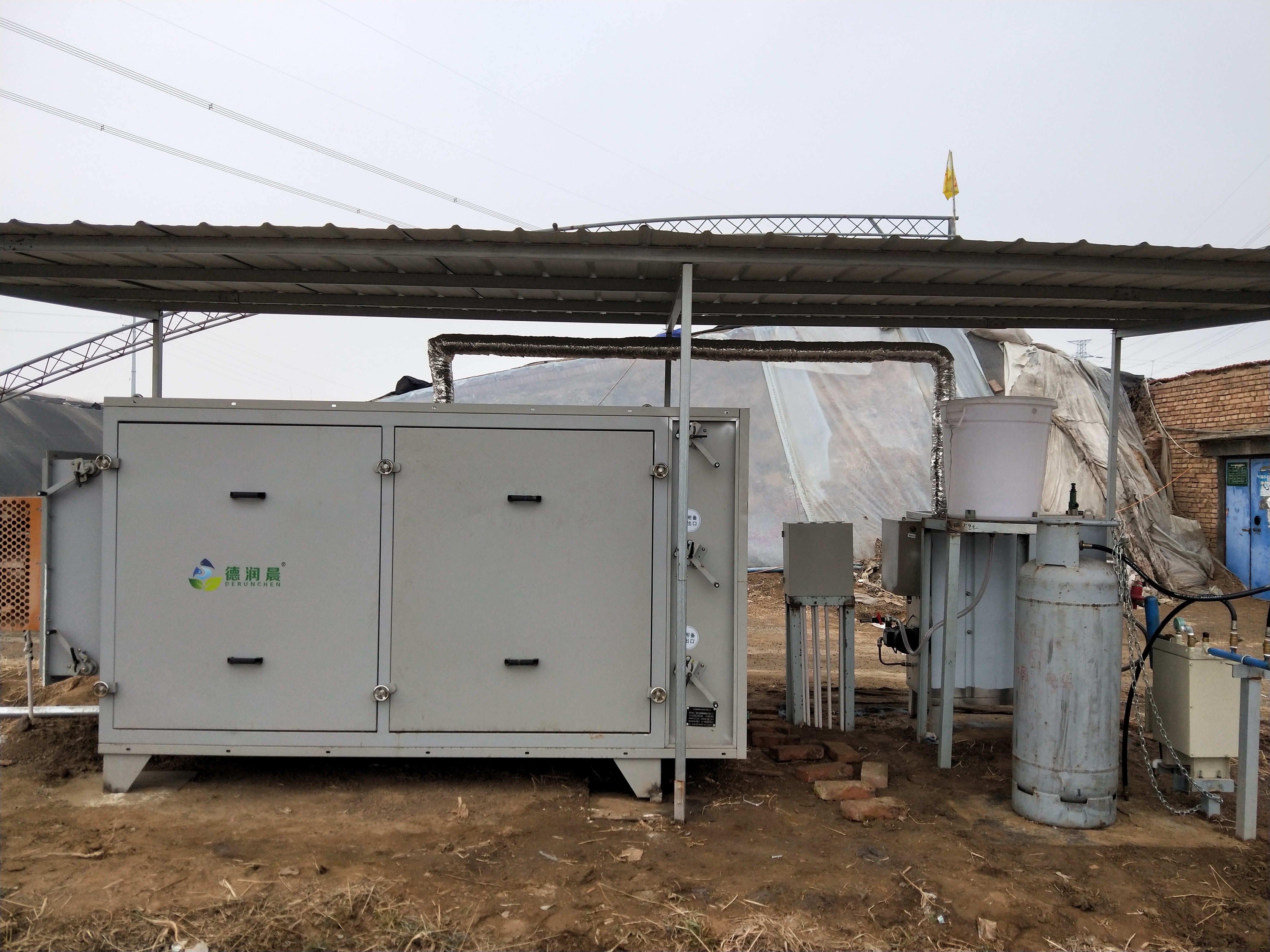

北京德潤晨在北京、山東壽光等地建立了20余處DAC試驗基地
DRC has set up more than 20 sets of DAC systems with solid amine adsorber in China.

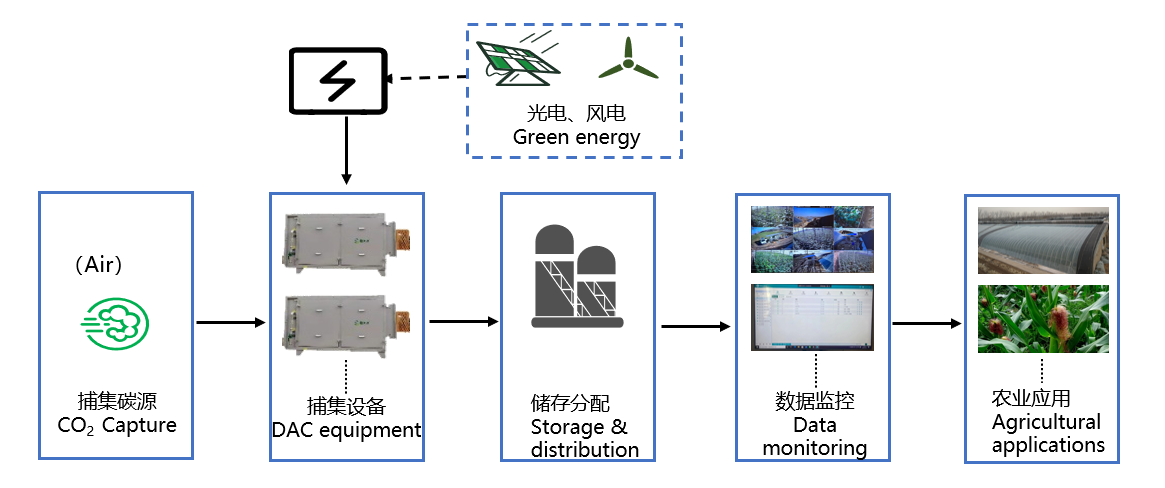

并將從空氣中捕集的CO2提供給周圍的溫室大棚做碳肥
The captured CO2 from atmospheric air is supplied to the nearby greenhouses as carbon fertilizers.
對黃瓜、西葫蘆、西紅柿、茄子、絲瓜等多種蔬菜進行驗證
Validate various vegetables such as cucumber, zucchini, tomato, eggplant, and luffa
棚內作物品質及產量大幅提高,幫助農戶收入提升15%-20%
Significant improvement in crop quality and output to increase farmers' income by 15% - 20%
CO2直接從空氣中獲得,不受地點限制
CO2 is directly obtained from the air without location restrictions

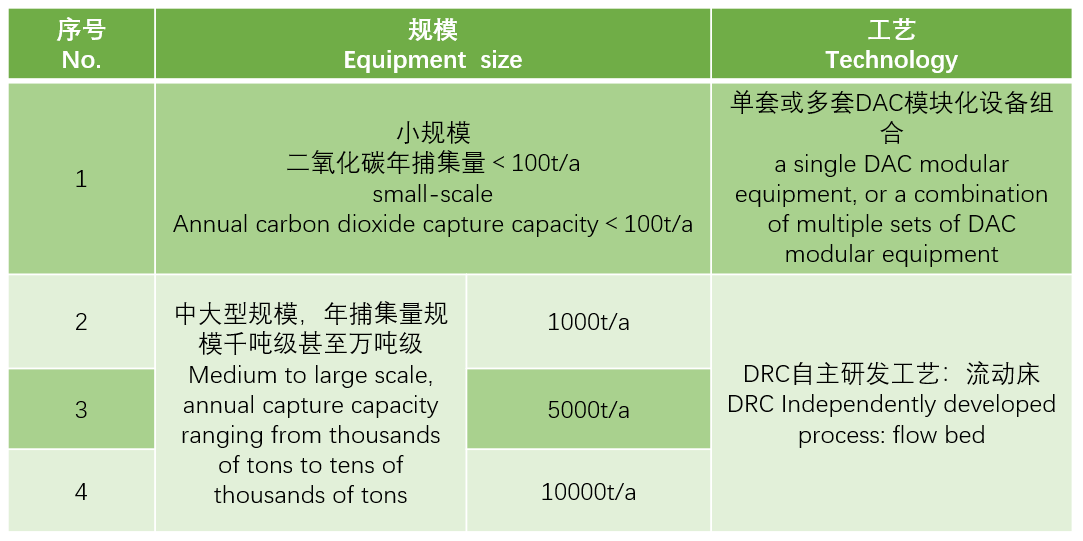

設備規??梢虻刂埔说膹拿磕陰资畤嵉缴先f噸
The equipment scale can be adjusted according to local conditions, ranging from tens of tons to tens of thousands of tons per year
工藝可選擇單套DAC模塊化設備、多套DAC模塊化設備組合或其他工藝
The process can choose from a single set of DAC modular equipment, a combination of multiple sets of DAC modular equipment, or other processes
二、工業煙氣CO2捕集
2. Flue gas CO2 capture
在工業煙氣CO2捕集領域
In the field of industrial flue gas CO2 capture

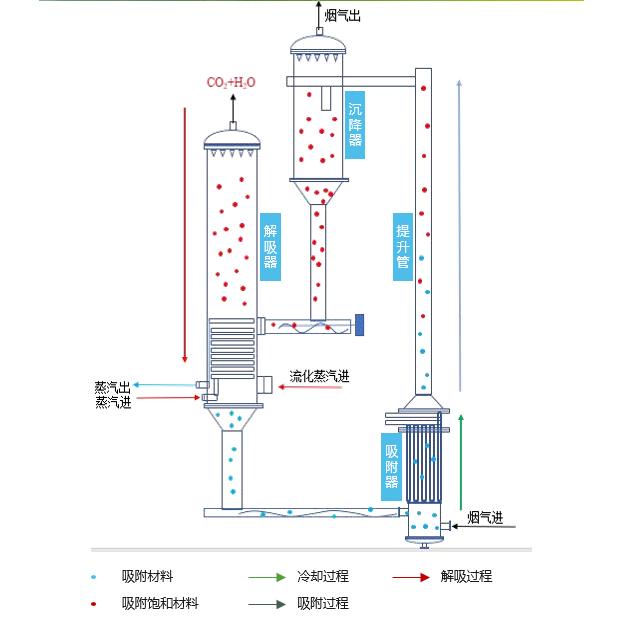

北京德潤晨創造性地將固態胺材料與循環流化床技術相結合
DRC creatively combines solid amine materials with circulating fluidized bed technology
這在世界上屬于首次
This is the first time in the world
現已完成了從設計研發、到中試調試、到最終落地運行的工藝全流程
The entire process from design and development, to pilot testing and debugging, to final implementation and operation has been completed
2020年,北京德潤晨創造性地將固態胺材料與循環流化床技術相結合
In 2020, DRC creatively combined solid amine materials with circulating fluidized bed technology
設計研發成功
Successful design and development
CO2捕集量300t/a 設備最終落地捷普科技(成都)
JABIL(Chengdu) fluidized bed equipment :capacity 300 t/a
捕集該廠天然氣鍋爐排放的CO2,并將捕集的CO2制作成干冰,供生產線清洗使用
Capture the CO2 emitted from the natural gas boiler of the plant and produce dry ice from the captured CO2 for cleaning on the production line
幫助企業打造及推廣“零碳干冰清洗車間”模式
Assist enterprises in creating and promoting the "zero carbon dry ice cleaning workshop" model
設備現平穩運行中
The equipment is currently running smoothly
